Tube Heading Machine JX-HS100

JX-HS100

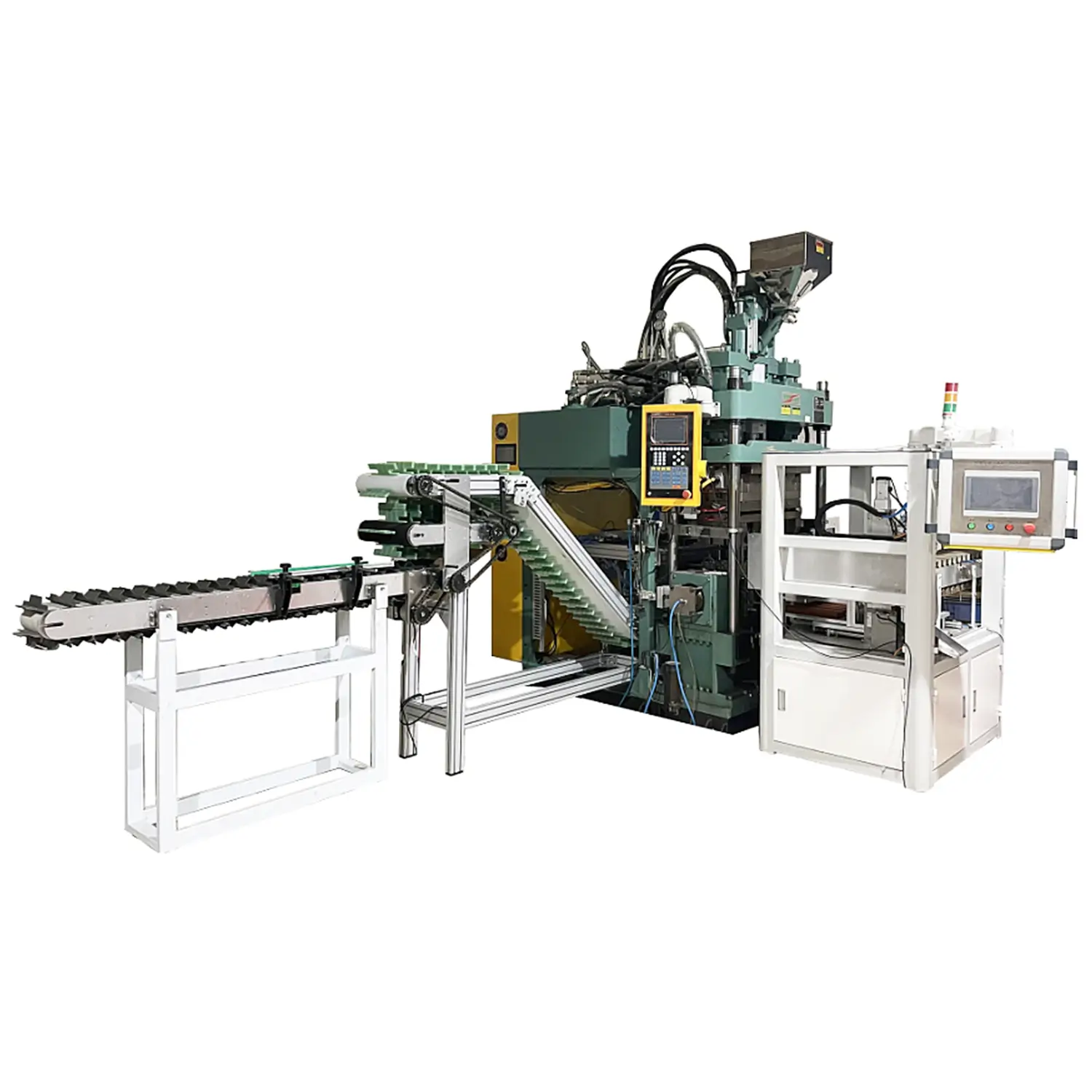

Hot runner injection heading machine JX-HS100

The JX-HS100 injection molding customized model is efficient, stable, and capable of continuously producing composite ABL and PBL tubes with small diameters. It adopts hot runner injection molding technology, with excellent molding quality and precise acceptance of tube body seaming machine, it can produce 100 pieces per minute and quickly supply subsequent sealing and capping equipment. Suitable for fast delivery of large quantities of small diameters.

woolley Tube Machine

Features

Fast and high precision
Servo automation control
Stable and easy to operate
Suitable for a variety of materials
Quick conversion specifications

Your preferred tube machines supplier → contact us

woolley Tube Machine

Application

Beauty Care Package
Health Care Package
Food Care Package
Home Care Package
Personal Care Package

For more tube production line solutions → contact us

woolley Tube Machine

Parameters

Attribute		Attribute
Tube diameter	16~22 mm	Machine Gross Weight (kg)	2500
Tube length	65-130 mm	Tube feeding mode	To use tube feeding machine
Voltage	380/50hz	Optional supporting machines	Optional chiller, air compressor
Power	40kw	Machine function	Forming head/shoulder automatically for laminated tubes
Machine sizes	3075×1947×3100mm	Laminate material	ABL，PBL, thickness 170-400micro

For More machine details and configurations → contact us

1.Suitable for D16,19,22mm tube
2.Suitable for ABL/PBL laminate, thickness range 170µm-400µm
3.Running speed max180pcs/min
4. Adopt vertical rotating injection mold~24 cavities in total 96mandrels with hot runner technology. The benefit of the hot runner control system is to achieve the proper weight of the component and wastage control
5. Servo control central shaft is used to achieve the perfect position of core and cavity. PLC control interlock system is used for mold protection and safety
6. Auto sleeve feeding system is used to gain proper orientation and adjustment
7. Shoulder thread and size are designed according to mold
8. Shoulder weight is adjustable as per requirements
9. Formed tubes are unloaded and are rejected automatically. Thread defectives can be detected by camera system and rejected on the tube out conveyor belt
10. Machine dimension: 3075×1947×3100mm
11. Power: 380V,50HZ,40KW.
